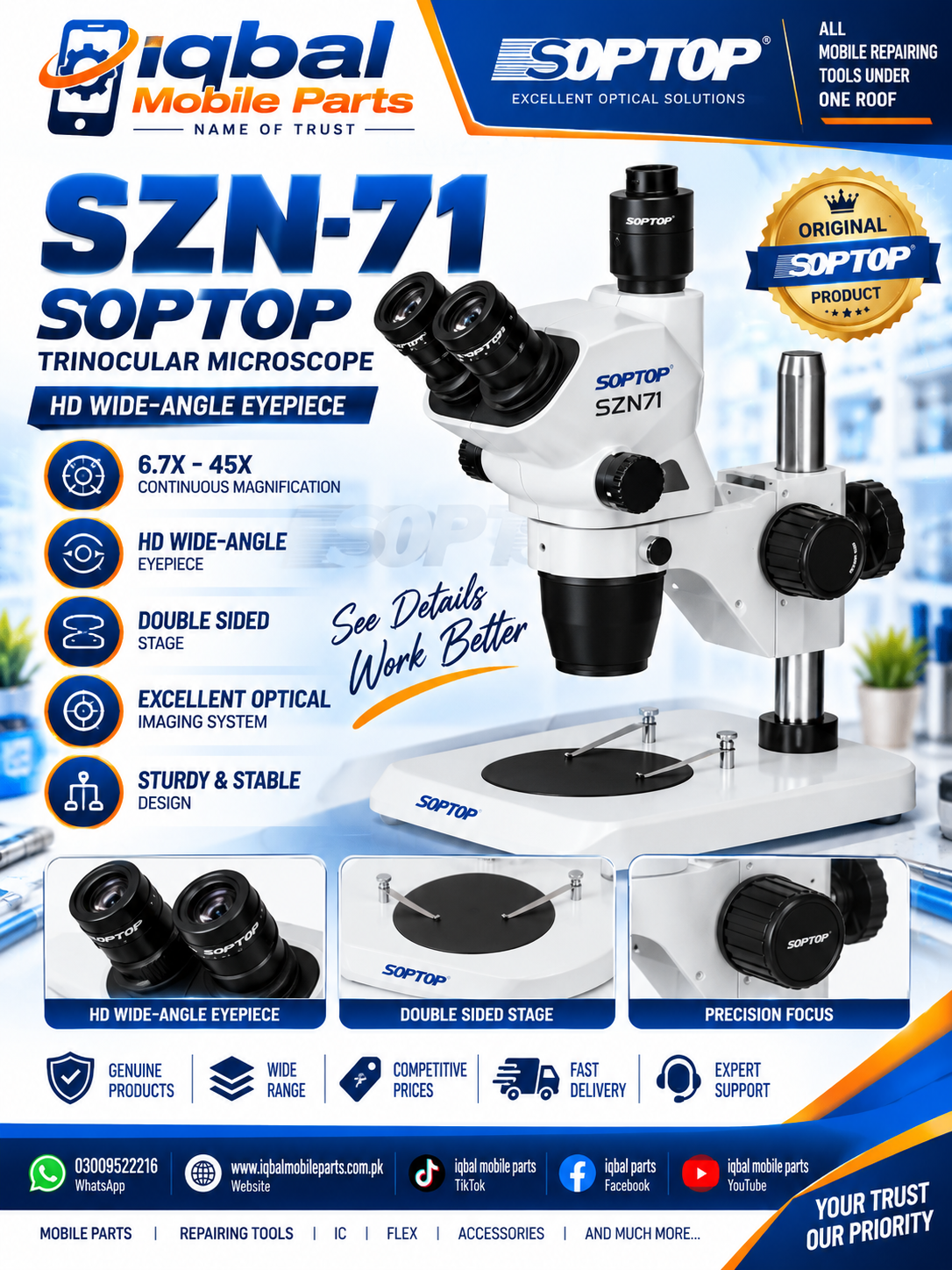

SZN71 SOPTOP MICROSCOPE

The

SOPTOP SZN71 is a high-end, professional-grade trinocular continuous zoom stereo microscope manufactured by Sunny Optical. It is widely considered a flagship tool for micro-soldering, mobile phone repair (BGA/IC chips), electronics engineering, and PCB inspection. [1, 2, 3, 4, 5]

• Magnification: Standard 6.7X to 45X continuous zoom (6.7:1 zoom ratio), expandable from 2X up to 225X with optional auxiliary lenses and eyepieces. [1, 2]
• Optics: Greenough optical system with a 10-degree convergence angle, paired with wide-field PL10X/22mm plan eyepieces for excellent edge-to-edge flatness and depth of field. [1, 2]
• Working Distance: Generous 110mm standard working distance, giving you plenty of clearance to work with a soldering iron, hot air gun, or tweezers under the lens. [1, 2]
• Head Design: 45° inclined trinocular head with 360° rotation. It features a 20%/80% beam-splitting ratio for co-visual observation (viewing through the eyepieces while simultaneously outputting to a camera)
• Standout Features
  • Parfocal Zooming: Unlike lower-end microscopes, the SZN71 allows you to zoom in and out smoothly without losing focus, eliminating the need to constantly readjust your height knobs while working.
  • Click-Stop Magnification: The zoom adjustment knob features precise physical “click stops”. This allows you to lock onto exact magnification levels, which is crucial for calibrated measurements and digital imaging consistency.
  • Push-Pull 3-Way Light Path Switching: An ergonomic lever lets you seamlessly route the light path depending on whether you are prioritizing eyepiece viewing or digital camera captures.
  • Excellent Light Retention: The optical path maintains incredible brightness and clarity even when maxed out at 45X magnification, avoiding the dark, muddy view typical of cheaper entry-level stereomicroscopes
  • Common Work Bench Configurations
    The SZN71 is highly modular and usually paired with specific upgrades depending on your repair layout:
    1. Camera Interface: Often paired with a 0.5X or 0.7X CTV lens adapter to attach 4K HDMI digital cameras, allowing you to stream crisp live video to an external monitor
    2. Mounting Bases:

       Commonly sold standalone or with custom heavy-duty setups, including large aluminum alloy thermal pad bases or articulated boom arms for flexible workbench positioning
